Key Features
- Pre-mounted V-LD3-RFB radar sensor, designed for human detection and multi-object tracking up to 20 meters
- Access to SPI, UART, JTAG, and CAN interfaces for complete control and customization during development
- Compact design with simple USB-C connectivity for easy integration with your host PC

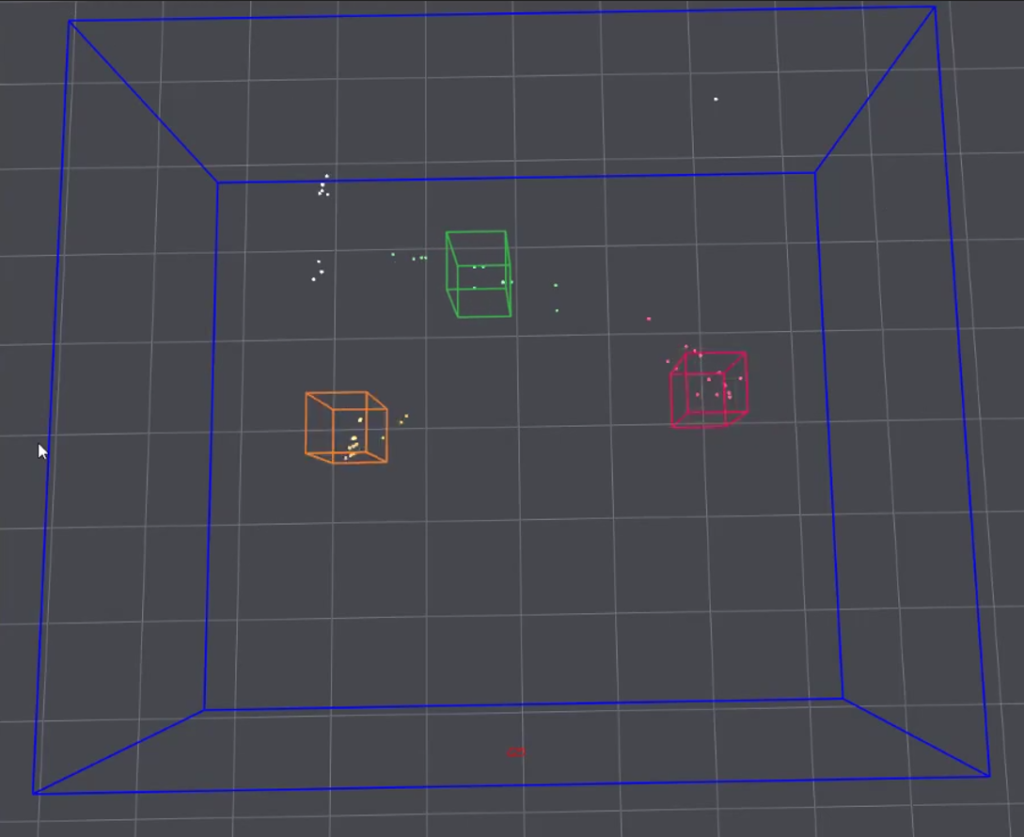

- Generates a detailed 3D point cloud for both static and moving targets, perfect for real-time object tracking
- No calibration required—the evaluation kit comes pre-calibrated and pre-programmed for immediate use
- Compatible with Texas Instruments’ low-power SDK, providing flexibility for firmware development and customization.
Experience the full capabilities of RFbeam’s V-LD3-RFB radar sensor module through our easy-to-use evaluation kit. Powered by Texas Instruments’ low-power IWRL6432 chipset, the V-LD3 is perfect for human detection and multi-object tracking up to 20 meters, making it an ideal solution for advanced radar applications.

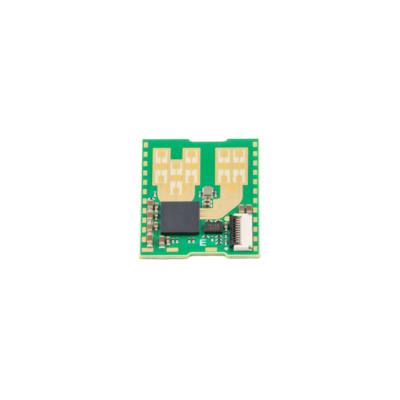

The V-LD3-RFB comes pre-programmed with TI’s innovative human presence detection demo and includes a human/non-human classifier, making setup and testing effortless. Optimized onboard antennas, pre-calibrated RF frontend, and a compact design make this sensor module ready for immediate use in your radar projects.
With the V-LD3 sensor already mounted, RFbeam’s evaluation kit provides immediate access to all the advanced features you need for development. The kit includes full access to sensor pins, SPI RAW data capture, JTAG, and CAN interfaces. Simply connect via USB-C to start evaluating the IWRL6432 chipset’s extensive capabilities for your project.
No need to wait—start exploring advanced radar functionality today with the V-LD3-RFB Evaluation Kit, designed to streamline your development process!
Availability:
Engineering samples -> Q1/2025
Mass production -> Q2/2025
Application notes
Certificates
| Ordering number | State | Description |
| V-LD3-EVAL-RFB-00H | Preview | Standard V-LD3 evaluation kit |
| V-LD3-RFB-00A-01 | Preview | Standard V-LD3 sensor module with default TI firmware |
