Product Name Picture Status Detection range person Detection range car Detection range water Moving targets Stationary targets Movement Direction Speed Distance Angle Opening angle horizontal Opening angle vertical Typ. supply voltage Typ. supply current Frequency band Precertification
K-DT1 Doppler target simulator The K-DT1 is a portable moving target simulator designed for K-band radar transceivers Active
30 °
 30 °
 100 mA
 24 GHz
K-HC1 Superhet transceiver K-HC1 24GHz Superhet radar transceiver module for high-sensitivity motion detection Active
210 m
 560 m
 25 °
 12 °
 24 V
 220 mA
 24 GHz
K-LC1a Radar transceiver K-LC1a is a 8 patch Doppler module Not Recommended for New Designs
12 m
 31 m
 80 °
 34 °
 3.3 V
5 V
 35 mA
 24 GHz
K-LC2 Radar transceiver K-LC1a is a 8 patch Doppler module Not Recommended for New Designs
12 m
 31 m
 80 °
 34 °
 5 V
 35 mA
 24 GHz
K-LC3 Radar transceiver K-LC3 is a 2 patch Doppler module Not Recommended for New Designs
7 m
 15 m
 138 °
 132 °
 3.3 V
5 V
 35 mA
 24 GHz
K-LC4 Radar transceiver K-LC4 is a 2 patch Doppler module Not Recommended for New Designs
6 m
 15 m
 138 °
 132 °
 5 V
 35 mA
 24 GHz
K-LC5 Radar transceiver K-LC5 is an extended range dual channel Doppler Radar module with an asymmetrical beam for short range sensors Not Recommended for New Designs
15 m
 40 m
 80 °
 34 °
 3.3 V
5 V
 75 mA
 24 GHz
 Canada - ISED
Europe - CE
USA - FCC
K-LC6 Radar transceiver K-LC6 is a dual channel Doppler Radar module with an asymmetrical narrow beam for short to medium distance sensors. Active
24 m
 62 m
 80 °
 12 °
 3.3 V
5 V
 85 mA
 24 GHz
 Europe - CE
K-LC7 Radar transceiver K-LC7 is a small and low cost radar module which allows angle measurements. Active
8 m
 22 m
 80 °
 34 °
 3.3 V
5 V
 90 mA
 24 GHz
 Europe - CE
K-LD2 Evaluation kit The K-LD2 Evaluation Kit is a fully operational movement detector. The evaluation board visualises the two digital outputs of the K-LD2 over LED’s Active
15 m
 30 m
 80 °
 34 °
 3.3 V
5 V
 55 mA
 24 GHz
 Canada - ISED
Europe - CE
Japan - MIC
USA - FCC
K-LD2 Radar transceiver The K-LD2 is a fully digital and low cost radar movement detector Active
15 m
 30 m
 80 °
 34 °
 3.3 V
5 V
 55 mA
 24 GHz
 Canada - ISED
Europe - CE
Japan - MIC
USA - FCC
K-LD7 Evaluation kit K-LD7 evaluation kit is a fully operational distance triggered movement detector Active
15 m
 30 m
 80 °
 34 °
 3.3 V
5 V
 30 mA
 24 GHz
 Canada - ISED
Europe - CE
USA - FCC
K-LD7 Radar transceiver K-LD7 is a fully digital low cost Doppler radar that can measure speed, direction, distance and angle of moving objects in front of the sensor Active
15 m
 30 m
 80 °
 34 °
 3.3 V
5 V
 30 mA
 24 GHz
 Canada - ISED
Europe - CE
USA - FCC
K-MC1 Radar transceiver K-MC1 radar transceiver Active
56 m
 150 m
 25 °
 12 °
 3.3 V
5 V
 90 mA
 24 GHz
 Canada - ISED
Europe - CE
USA - FCC
K-MC1_LP Radar transceiver K-MC1_LP radar transceiver Active
50 m
 140 m
 25 °
 12 °
 3.3 V
5 V
 7.5 mA
 24 GHz
 Canada - ISED
Europe - CE
USA - FCC
K-MC3 Radar transceiver K-MC3 24GHz Doppler radar transceiver module with I/Q outputs for direction sensing Active
70 m
 180 m
 25 °
 7 °
 3.3 V
5 V
 90 mA
 24 GHz
 Europe - CE
K-MC4 Radar transceiver K-MC4 doppler radar transceiver Active
37 m
 93 m
 30 °
 12 °
 3.3 V
5 V
 180 mA
 24 GHz
 Canada - ISED
Europe - CE
USA - FCC
K-MD2 Engineering sample K-MD2 Obsolete
50 m
 200 m
 30 °
 21 °
 12 V
 550 mA
 24 GHz
 Europe - CE
K-MD7 Evaluation kit k-md7 evaluation kit digital radar sensor for speed measurement Active
50 m
 150 m
 34 °
 30 °
 3.3 V
5 V
 72 mA
 24 GHz
 Europe - CE
K-MD7 Radar transceiver K-MD7 24GHz radar transceiver module for multi-target tracking and speed measurement Active
50 m
 150 m
 34 °
 30 °
 3.3 V
5 V
 72 mA
 24 GHz
 Europe - CE
K-TS1 Radar test system K-TS1 Active
30 °
 30 °
 24 V
 100 mA
 24 GHz
K-XC1 Radar transceiver K-XC1-Patch radar transceiver Not Recommended for New Designs
10 m
 15 m
 25 °
 12 °
 24 V
 300 mA
 24 GHz
MR2001_RD Reference design MR2001_RD 77GHz automotive radar reference design board featuring NXP chipset Obsolete
50 m
 200 m
 11 °
45 °
70 °
 12 °
 12 V
 1000 mA
 77 GHz
MR3003_RD Reference design MR3003_RD 77GHz high-resolution radar reference design for long-range automotive sensing Obsolete
35 m
 130 m
 30 °
48 °
 11 °
 12 V
 280 mA
 77 GHz
RFA1 Radar activator Low power radar movement detector rfa1 radar activator Active
10 m
 20 m
 80 °
 34 °
 12 V
 10 mA
 24 GHz
RSP1 Radar signal processor rsp1 radar signal processor Active
15 m
 30 m
 80 °
 34 °
 12 V
 50 mA
 24 GHz
ST100 Starter kit analouge Radar sensors st100 starter kit Active
5 V
 200 mA
 24 GHz
ST200 Starter kit explore doppler st200 starter kit Not Recommended for New Designs
12 V
5 V
 500 mA
 24 GHz
V-LD1 Distance sensor V-LD1 61GHz radar distance sensor module for industrial measurement applications Active
20 m
 50 m
 50 m
 60 °
 172 °
 1.8 V
 10 mA
 61 GHz
 Canada - ISED
Europe - CE
USA - FCC
V-LD1 Evaluation kit V-LD1 Evaluation Kit with 61GHz radar sensor and detachable plastic lens Active
20 m
 50 m
 50 m
 8 °
 8 °
 3.3 V
5 V
 50 mA
 61 GHz
 Canada - ISED
Europe - CE
USA - FCC

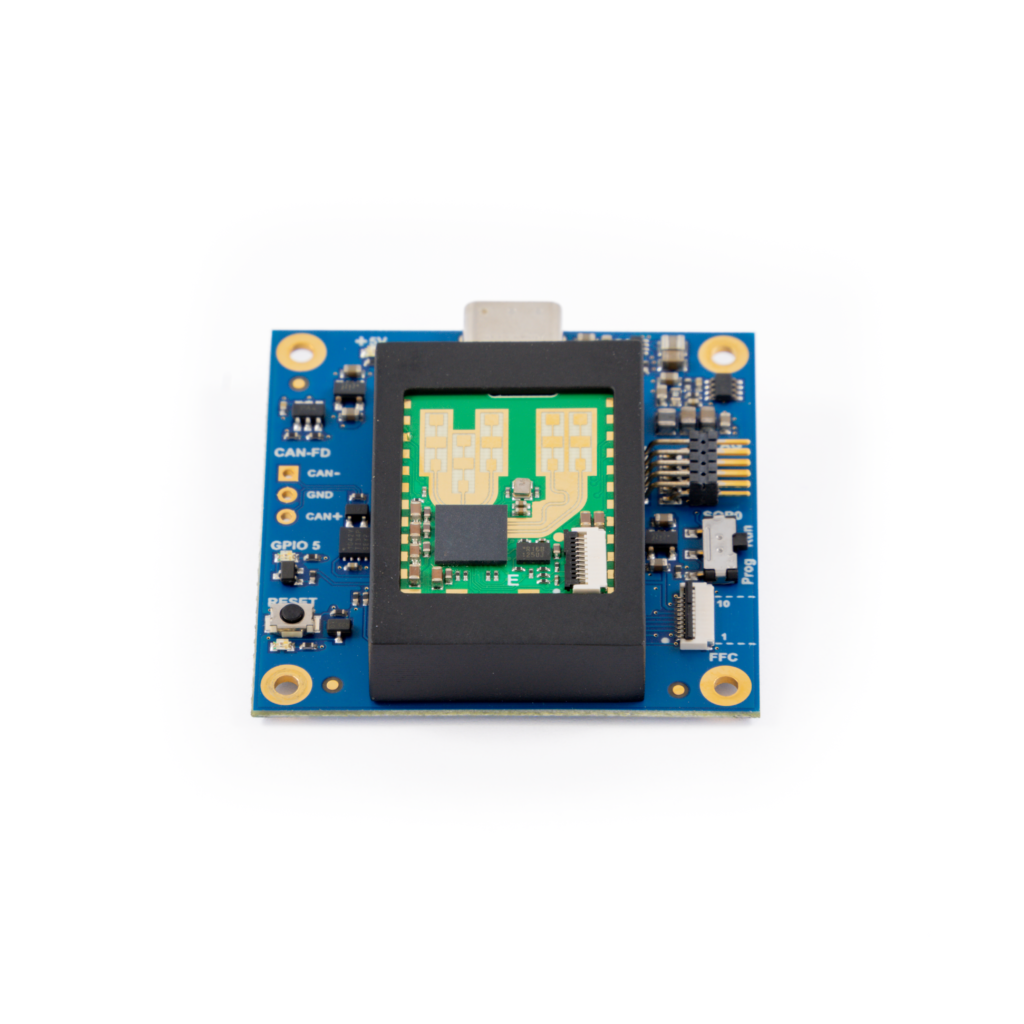

V-LD3 Evaluation kit RFbeam V-LD3 Evaluation Kit for 60GHz Radar Sensor development ES
20 m
 60 m
 110 °
 50 °
 1.8 V
 10 mA
 61 GHz

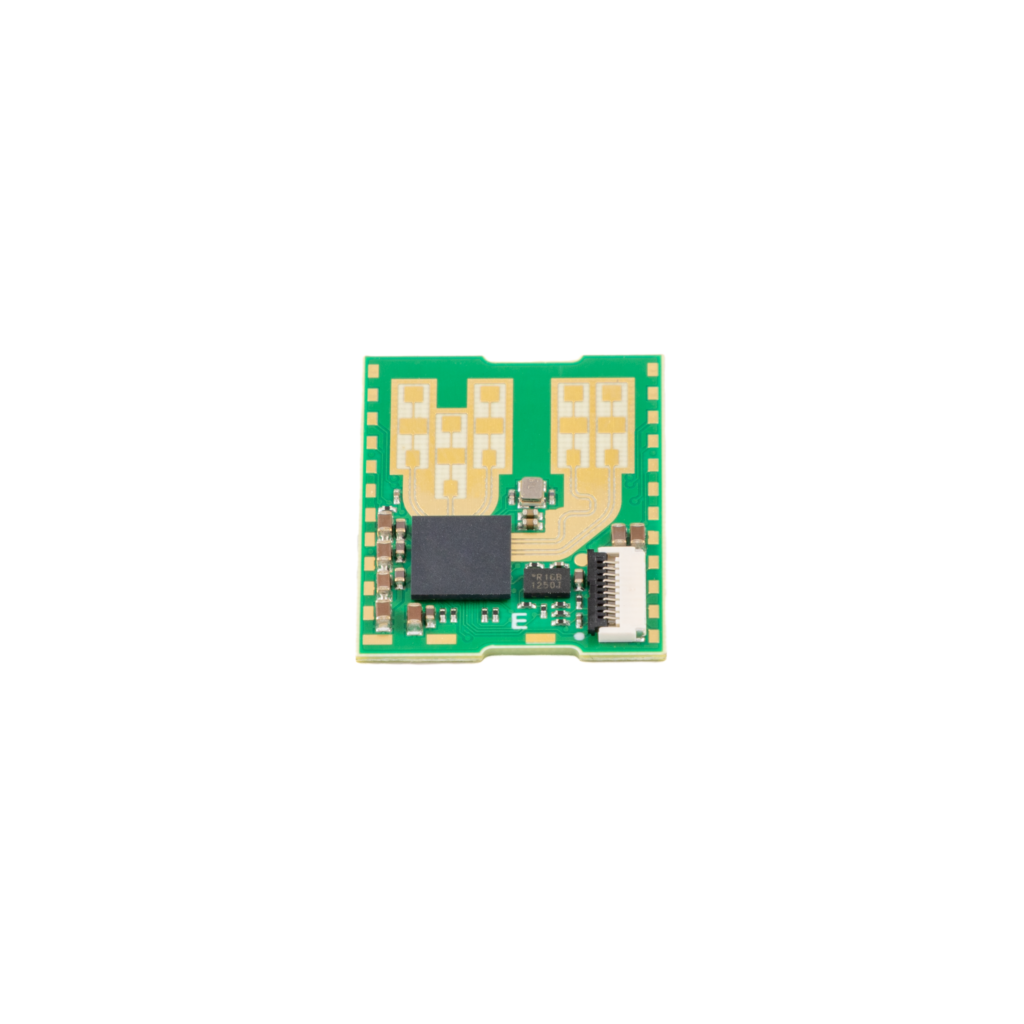

V-LD3 Object Tracking Sensor V-LD3 Object Tracking Sensor ES
20 m
 60 m
 110 °
 50 °
 1.8 V
 10 mA
 61 GHz
V-MD3 Radar transceiver v-md3 radar transceiver Active
30 m
 80 m
 60 °
 36 °
 12 V
24 V
 300 mA
 61 GHz
